VK-100ARg : Wireless 11b/g ADSL 2+ Router with 4 Ports Switch |
|||
|
▪ Product Features |
▪ Product Image |
||
| ▪ ADSL / ADSL 2 / ADSL 2+ complies with Annex A, B, M |
|
||
| ▪ Complies with IEEE 802.3, 802.3u 10/100Mbps Ethernet | |||
| standards, IEEE 802.11b/g standard | |||
| ▪ Supports 64/128 bit WEP, WPA, and WPA2 for wireless | |||
| security | |||
| ▪ Complies with ATM protocol and router functions | |||
| ▪ Ethernet to ADSL-self-learning (up to 128 MAC) | |||
| transparent bridging complies with IEEE 802.1d | |||
| ▪ Provides DMZ and virtual server function, and includes | |||
| routing, bridge, static IP, DHCP Server / Client, PPPoE, | |||
| PPPoA and so on | |||

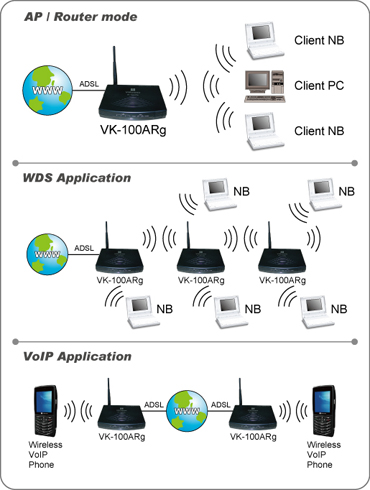

| ▪ Supports AP and WDS function | |||
| ▪ Complies with CE, FCC, RoHS, and WEEE | |||
|
▪ Product Spec |
|||
| ▪ Standards : | |||
| (1) ADSL / ADSL 2 / ADSL 2+ standard | |||
| (2) IEEE 802.3, 802.3u 10/100Mbps Ethernet standard | |||
| (3) IEEE 802.11b/g standard | |||
| ▪ Interface : | |||
| (1) 1 WAN port and 4 LAN ports | |||
| (2) 1 of RJ-11 ADSL Line Port for Annex A, B, M | |||
| (3) 1 of detachable 5dBi high gain antenna | |||
| ▪ Channels : Worldwide | |||
| ▪ Frequency Band : 2.4000 ~ 2.4835GHz | |||
| ▪ Modulation : OFDM with BPSK, QPSK, 16QAM, 64QAM (11g) | |||
| BPSK, QPSK, CCK (11b) | |||
| ▪ Data Rate : 54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps | |||
| auto fallback | |||
| ▪ Wireless mode : | |||
| (1) Supports 802.11b/g Access Point and WDS | |||
| (2) Supports 64/128 bit WEP, WPA, and WPA2 | |||
| ▪ ADSL 2 / ADSL 2+ Compliance : | |||
| (1) DMT modulation and demodulation | |||
| (2) Maximum downstream rate is 24 Mbps, and maximum |
 |
||
| upstream rate is 2 Mbps | |||
| (3) Tone detection for low power mode | |||
| (4) Interoperability with all major DSLAM equipment | |||
| ▪ ATM Protocol : | |||
| (1) WAN mode support : PPP over ATM (PPPoA) and PPP | |||
| over Ethernet (PPPoE) | |||
| (2) LAN mode support : bridged / routed Ethernet over ATM | |||
| and classical IP over ATM | |||
| (3) Up to 8 VCs (Virtual Circuits) | |||
| (4) ATM SAR (segmentation and reassembly) and AALC | |||
| (adapted layer type 5) | |||
| ▪ Bridge Mode : | |||
| (1) Ethernet to ADSL Self-Learning Transparent Bridging | |||
| (IEEE 802.1D) | |||
| (2) Supports MAC learning addresses | |||
| ▪ Router Mode : | |||
| (1) IP routing, Static routing, DNS Proxy, and Dynamic DNS | |||
| (2) DMZ, Port Forwarding, and DHCP Server / Client | |||
| (3) NAT, ICMP, Virtual Server | |||
| ▪ Security : | |||
| (1) Packet inspection and filtering | |||
|
(2) Instruction detection and protection |
|||
|
(3) PAP (Password Authentication Protocol) |
|||
| (4) CHAP (Challenge Authentication Protocol) | |||
| (5) Password protected system management | |||
| ▪ Transmit Power : 18dBm | |||
| ▪ Receive Sensitivity : -65dBm @ 54Mbps, -80dBm @ | |||
| 11Mbps | |||
| ▪ Environment : Temperature : 0~55 C degree; Humidity : | |||
| 10%~90% (non-condensing) | |||
| ▪ Shipping Information : | |||
| (1) 10 units per carton | |||
| (2) Dimension : 38 cm * 30 cm * 31 cm / per carton | |||
| (3) G.W. : 12Kgs / per carton | |||
| (4) Accessory : CD, Ethernet Cable, QIG, Power Adapter, | |||
| RJ11 Cable, High Gain Antenna | |||
| (5) Complies with CE, FCC, RoHS, and WEEE | |||
| ¡@ | |||
