VK-100Panel24 : 2.4GHz 14dBi Water Proof Panel Antenna |
|||
|
▪ Product Features |
▪ Product Image |
||
 |
|||
| ▪ VK-100Panel24 is an advance wireless antenna to | |||
| provide high spped and expand wireless coverage | |||
| ▪ SMA connector allows you to connect with ViKosmo | |||
| Wireless G Family and ViKosmo Wireless N Family | |||
| ▪ 500 cm LLC200 cable length allows you to reach better | |||
| wireless performance and take the shortest path to a | |||
| destination in your outdoor network environment | |||
| ▪ One lighting protector to protect your network devices | |||

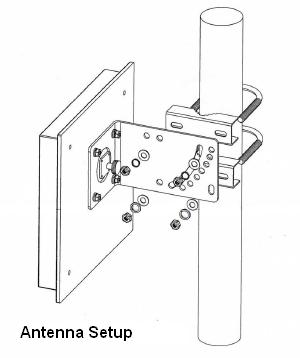

| ▪ Offers all mounting accessories | |||
| ▪ Product Spec | |||
| ▪ Antenna Type : 2.4GHz 14dBi Water Proof Panel Antenna | |||
| ▪ Lighting Protector : Yes | |||
| ▪ Cable Type : Low Loss 200 (LLC200) Cable | |||
| ▪ Cable Length : 5 meters (500 cm), N type to RP-SMA | |||
| ▪ Accessory : All mounting accessories | |||
| ▪ Antenna Spec : | |||
| (1) Frequency : 2.4G~2.483G Hz | |||
| (2) Max Gain : 14dBi | |||
| (3) Polarization : Vertical | |||
| (4) Beam Width Degree of Vertical : ¡Ó 20 degree | |||
|
(5) Beam Width Degree of Horizontal : 20 degree |
|
||
|
(6) SWR : ¡Ø 1.5 : 1 |
|||
| (7) Impedance : 50 Ohm | |||
| (8) Connector : N type / Female | |||
| ▪ Lighting Protector Spec : | |||
| (1) DC Breakdown Voltage : 230V ¡Ó 20% (100V/s Speed) | |||
| (2) Pulse Breakdown Voltage : < 600V (100V/s Speed) | |||
| (3) AC Current Range : 20A | |||
| (4) Pulse AC Current Range : 200A | |||
| (5) Over Voltage Protection : > 150V (100mA, < 150ms) | |||
| (6) Isolation Resistor : 1000m Ohm | |||
| (7) Transmission Loss : -1.5dB | |||
| (8) Frequency Range : DC 2500MHz | |||
| (9) Gap Can : 1.5P | |||
| ¡@ | |||
