VK-302IPCamg : Wireless G MPEG4/MJPEG/Pan-Tilt CMOS IP Camera

Product Features

Product Image

Wireless 11b/g Standard

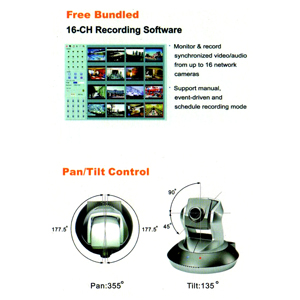

Motorized Wide-Range Pan 355 degree and Tilt 135
degree.
16 Channels Display, and 4X Digital Zoom.
 Up to 30 Frames Per Second in VGA Resolution.
Primary user's capability : Main Screen with Camera View,
Digital Zoom, Snapshot, Client settings.
Administrator's capability : Fine-tuning for Best
Performance, Open accounts for new users, Build a security
application, Software revision upgrade.
Definitions in Configuration : System parameters, Security
settings, Network settings (network type, HTTP, RTSP
Streaming, WLAN configuration), DDNS, Account list, Audio
and Video settings, Image settings, Email and FTP settings,
Motion detection.
Application settings : Snapshot, Weekly schedule,
Snapshot file name prefix, Send out the snapshot white
motion detection, Sequential operation, Method for sending
snapshot.
URL commands : Get/Set server parameter values,
Available parameters on the server, Application page CGI
command, Capture single snapshot, Account management,
System logs, Configuration file, Upgrade firmware.
Complies with CE, FCC, RoHS, and WEEE.
Product Spec
Memory : 32MB SDRAM + 4MB FLASH ROM
Networking :
(1) TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, Telnet, NTP,
DNS,  DHCP and RTSP.
(2) 10/100 baseT Fast Ethernet auto negotiation
(3) 802.11b/g Standards
Video :
(1) Algorithm supported : MPEG4 / MJPEG
(2) Adjustable image size, quality, bit rate
(3) Time stamp and text overlay
(4) 3 motion detection windows
(5) Resolution : Up to 30/25 frames at 160*120, 320*240,
640*480
Camera Spec :

(1) 1/4 inch color CMOS sensor

(2) 640*480 VGA resolution, , 4X Digital Zoom
(3) 1.5 Lux / F2.0
(4) AGC, AWB, AES
(5) Electronic shutter : 1/60 ~ 1/15000 second
(6) Pan : 355 degree, Tilt : 135 degree
Lens : Fixed focal with fine tuning, 4.0mm, F2.0
Audio : AAC, GSM-AMR
Microphone : Omni-directional, 50~16000Hz, S/N ratio more than 60dB
LED indicator : Dual color status indicator
Environment : Operating Temp. : 0~50 C degree; Operating Humidity : 10% ~ 90% (Non-condensing)
Microsoft Windows 98SE/ME/2000/XP, IE5.x or above
Package Contents : IP Camera, Power Adapter, Camera Mount Kit, CD, QIG, Antenna
